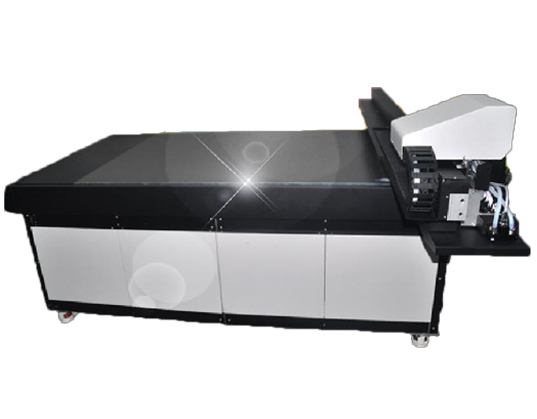

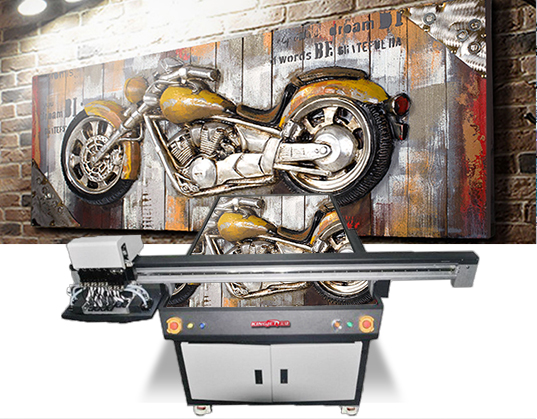

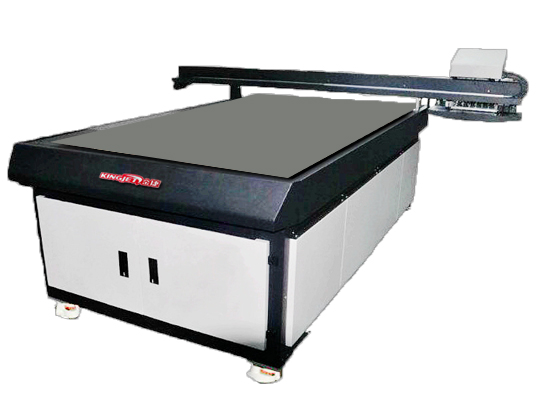

KINGJET KJ-1016UV Flatbed Printer





KINGJET KJ-1016UV Flatbed Printer

Equipped with Ricoh GH2220 print head,fast speed,good stability,low maintenance cost,and fine color drop to 3.5pl. Media Type:Wood panel,Aluminum panel,Door plank,Paperboard,PVC expansion sheet,Ceiling panel,Glass,Ceramics,Acrylic,PVC,etc.



Inquire Now Next Product


KINGJET KJ-1016UV Flatbed Printer

With the capability to print onto thick substrates,it offers the ability to produce a diverse range of prints for both indoor and outdoor use.ideal for applications such as backlit displays and signage,signs and posters,interior décor,glass and metal decorative panels and more.



Uniquer Technology

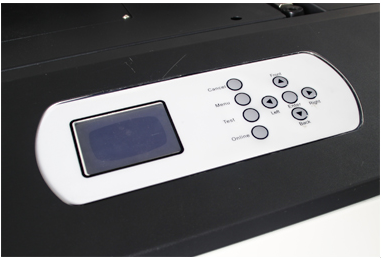

Control Panel

Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.

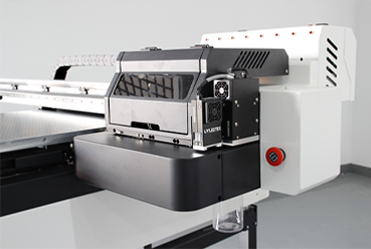

Small Cariage Form

Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.

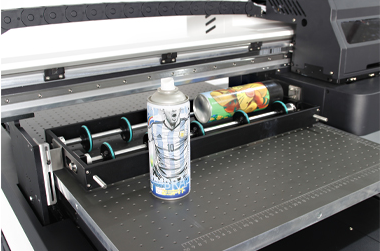

Cylinder Clampe

Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.

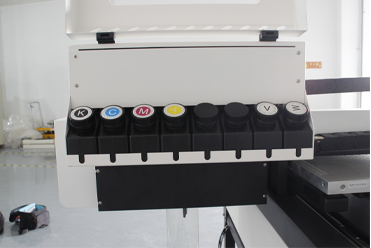

Ink Bottle

First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.

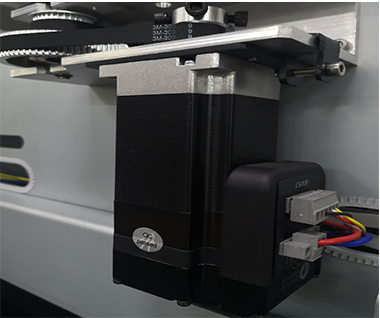

Leadshine motor

Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.

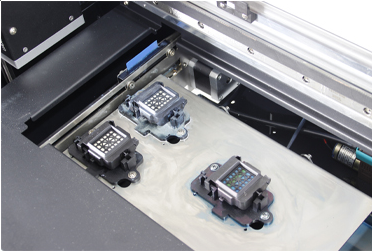

Intelligent ink scraping design

Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.

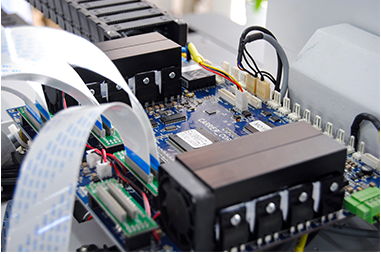

Honosoft carriage board

Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.



Specifications

Model KINGJET KJ-1016UV Flatbed Printer
Color C M Y K W or C M Y K Lc Lm
Printhead RICOH Gh2220 3.5PL (Piezoelectric Printhead)
Top Resolution 600DPI, 900DPI, 1200DPI, 1800DPI, 2400DPI
Media Wood panel, Aluminum panel, Door plank, Paperboard,PVC expansion sheet, Ceiling panel, Glass, Ceramics, Acrylic, PVC, etc.
Printing Speed GH2220-4H                               6 pass 12m²/h                                                   GH2220-6H                         6 pass 16m²/h
                                                   8 pass 9m²/h                                                                                                8 pass 12m²/h
                                                   12 pass 6m²/h                                                                                             12 pass 9m²/h
Size of Material Maximum Printing Area：Panel:1.0m（width）x 1.6m（depth）
Grey Scale 3 Grey Scale
Thickness of Material Panel：≤ 70mm
Weight of Material Panel：≤ 45 kg/m2
Image format Tiff,JPG,Postscript3,EPS,PDF,AI etc.
Ink Environmental protective UV ink
Power Supply AC,50HZ/60HZ , 220v（±10%）＞15A ;2.5kw(exclusive of fan)
Printing software Photoprint/Maintop
Optional Air Compressor
Net & Gross 400kg/500kg
Package dimensions (W x D x H) 2.3x2.2x1.2m
Operation environment Temperature: 15-30℃(59-86℉) Humidity: 40-80% RH (non-condensing) Operating Noise ≤80dB
Safety Certification CE Certification/SGS
