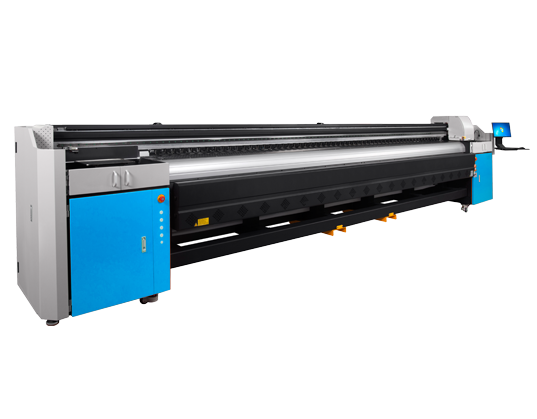

KingJet 5m Large Format Printer
5m large format printer for outdoor advertising: flex banner, film, billboard, etc.
Inquire Now
5m large format printer for outdoor advertising: flex banner, film, billboard, etc.
Alumunium Girder & Platform
High precision & durable printing.
Elevation Type Capping Station
New design capping system, more durable.
Mute guide rails
high pricison & smooth operation to ensure perfect quality output.
Infrared & Fan Drying System
High efficency drying system,printing continuously.
Feeding & Take-up System
Constant tension,ensure accurate & smooth operation.
Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.
Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.
Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.
With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.
Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.
Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.
Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.
With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.
| Print Technology | Industrial piezoeletric inkjet |
|---|---|
| Ink Type | Solvent Ink |
| RIP Software | Photoprint, Maintop |
| Color Configuration | 4 Color (CMYK) |
| Operating System | Windows 7/8 64bits |
| Image Format | TIFF/JPEG/PDF/EPS |
| Printhead Height | 2-8mm above media adjustable |
| Ink Capacity | 5L Per Main Tank of Each Color |
| Maximum Printing Width | 5100mm (16.73ft) |
| Maximum Media Standard | 5200mm (17ft) |
| Media Type | Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc |
| Media Transmit | Media feeding system (Max media weight: 120kg) |
| Heating & Drying System | Equipped (Infrared Ray+Fan Drying) |
| Data Interface | Hi-Speed USB 2.0 |
| Temperature | 15-32 ℃ (59-90℉), 20℃(60℉) or more recommended 35 to 80% RH (no condensing) |
| Humidity | 35 to 80% RH (no condensing) |
| Maximum Power | ＞20A, 4.0KW |
| Input Power | AC220V (±5%), 50HZ/60HZ |
| Machine Dimension/Weight | L7,015×W950×H1490 mm / Net Weight: 1200kgs |
| Package Dimension/Weight | L7,095×W1150×H1530 mm / Net Weight: 1350kgs |
