KINGJET KJ-3204G Flex Printing Machine





KINGJET KJ-3204G Flex Printing Machine

Model: KJ-3208G –KM512I-30PL-4H/8H Printing Quality: 480dpi Highest Printing Speed: 240sqm/h (2 Pass)



Inquire Now Next Product


KJ-3208G adopt the newest Koncia Minolta 512i printhead, the maximum printing speed is 240 sqm/h. Efficient and productive KJ-3208G printer enable users increasing profit while save work time. .

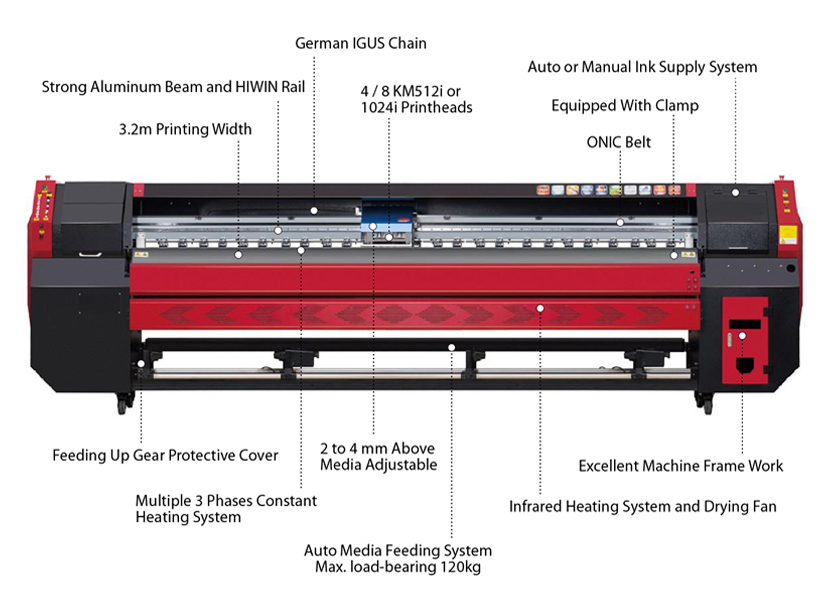

Detail Dislay


Alumunium Girder & Platform

High precision & durable printing.


Elevation Type Capping Station

New design capping system, more durable.


Mute guide rails

high pricison & smooth operation to ensure perfect quality output.


Infrared & Fan Drying System

High efficency drying system,printing continuously.


Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Application


Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.


Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.


Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.


Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.



Specifications

Max Print Width 3200mm (10.5ft)
Printing resolution 480DPI (Physical)
Product Model KM512I-30PL-4H                                                                                              KM512I-30PL-8H
Output(sqm/h) Print Mode                                     output speed(sqm/h)                                  Print Mode                         Output Speed(sqm/h)
480X360dpi 2pass                            120                                                         480X360dpi 2pass                         240
480X540dpi 3pass                            90                                                           480X540dpi 3pass                         180
480X720dpi 4pass                            60                                                           480X720dpi 4pass                         120
Ink Type Kingjet solvent ink
Ink color C M Y K/td>
Ink Capacity 5 L per main tank of each color
Ink Supply System Low ink detector, auto or manual ink supply system
Media Widthe 3300mm (10.8ft)
Auto Media Feeding System Equipped (Max. Media Weight 120kg )
RIP Software PhotoPRINT 10.5 or Maintop V5.30
Media Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Printhead Height 2 to 4 mm Above Media Adjustable
Cleaning System Auto Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Operation Environmet Temperature: 20~28℃ Humidity: 40%~60%
Input Power AC 220V,50HZ,4500W
Machine Dimension L4,850 x W1010 x H1,340 mm; Net Weight: 680Kgs (1,499lbs)
Package Dimension L5230 x W1040 x H1480mm; Gross Weight: 900Kgs (1,984lbs); Two units in one 20 feet container
