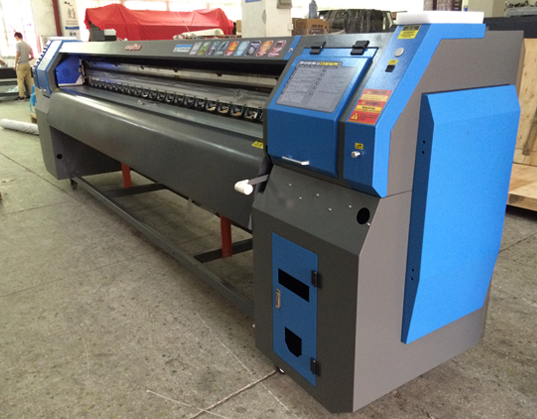

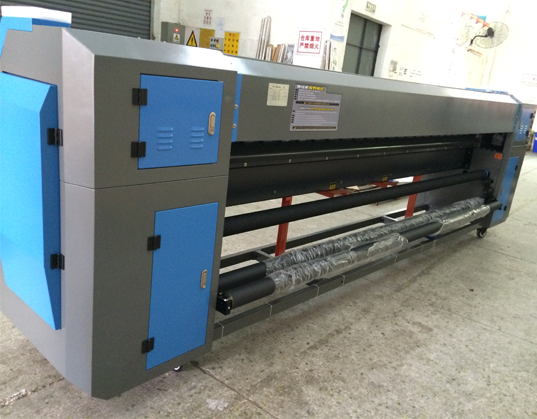

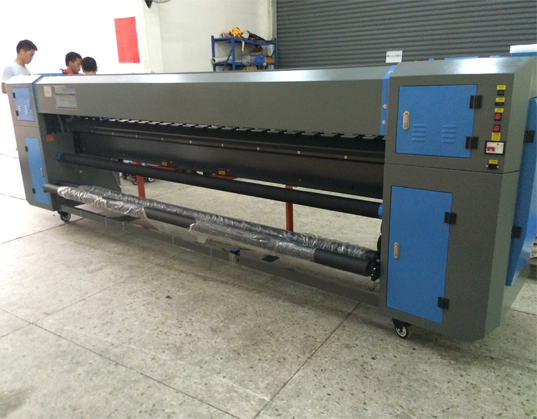

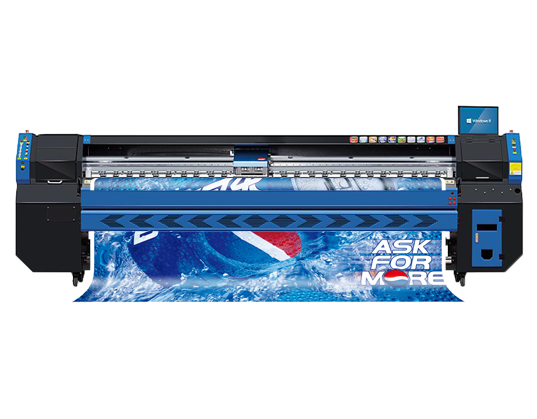

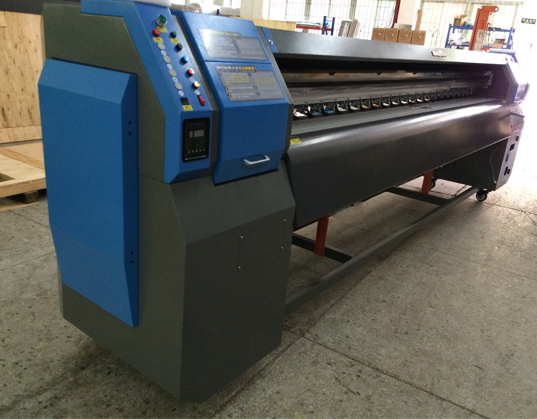

KINGJET Konica 512i Solvent Printer KJ-3208G
Equipped with Japan Konica 512i solvent print head, KINGJET KJ-3208G 3.2m printer can print at speeds of up to 240 sqm/h.
Inquire Now
Product Details
What features should the best solvent printer has?
A. Printing Quality
People will pay attention to the printing quality when talking about a printer. Printing quality is not only resolution. Actually, large format outdoor advertising doesn't need high resolution, meanwhile brilliant colors and creatively design is more important.
B. Printing Speed
Another point we'll concern about is "printing speed". In order to earn more profit per unit time, eveyr body wish their machines print faster. However, it is not easy to keep good quality at fast printing.
Kingjet Printer
Other Printer
KINGJET

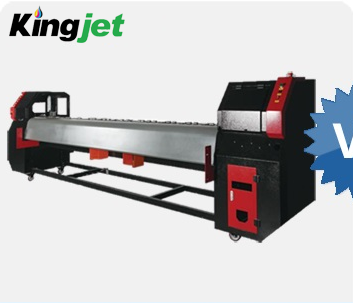

Real industrial Mechanical Design,the frame strong,stable,reliable: Maximum 2 tons bearing integrated trusses box type.
OTHER PRINTER

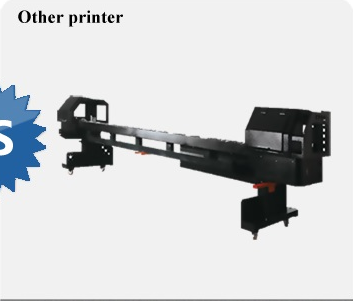

Common type of machine frame.
KINGJET

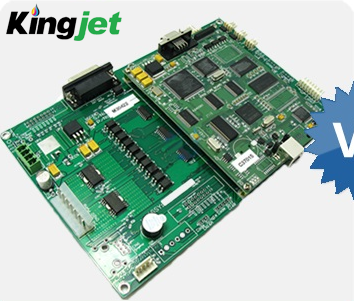

BYHX main board for konica 512 head,only 10 authorized manufacturer in Chaina.
OTHER PRINTER

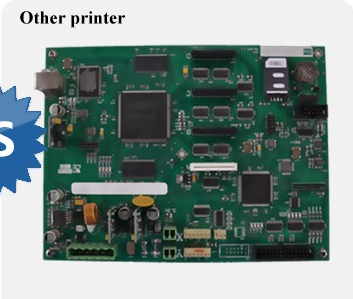

Common type of main board.
KINGJET

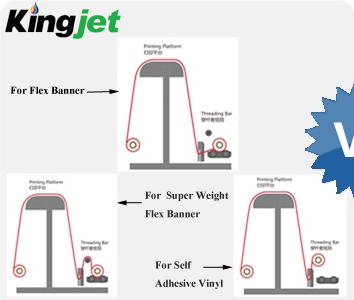

Media feeding system of KINGJET series machine is able to fulfill different demand of different material for customers.
OTHER PRINTER

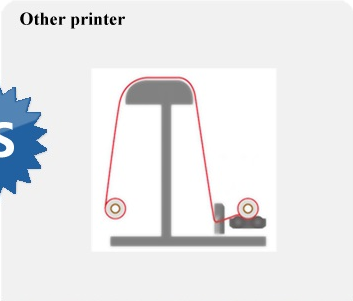

Common function feeding system.
KINGJET

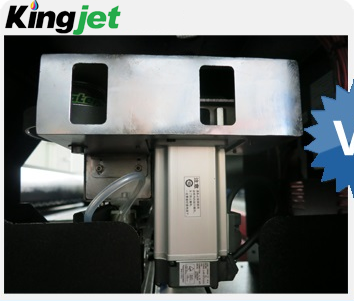

Japan Panasonic AC servo motor.

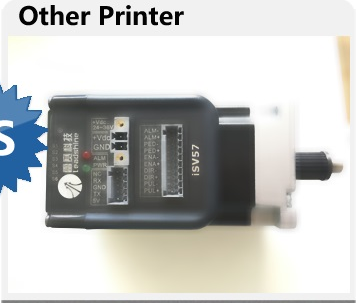

OTHER PRINTER
Common type of servo motor system.
KINGJET

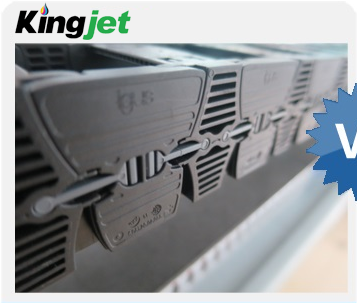

The German IGUS chain
OTHER PRINTER

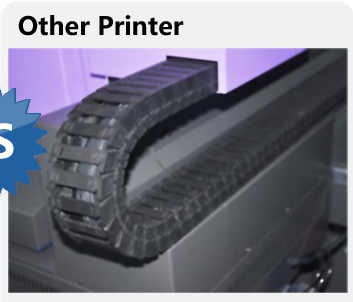

Common type of chain.
Application
Outdoor Flex Banner
Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.
Vehicle Wraps
Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.
Outdoor Posters and Backlit Displays
Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.
Outdoor Mesh
With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.
Specifications
| Model | KingJet KJ-3208G | |||
|---|---|---|---|---|
| Max Print Width | 3200mm (10.5ft) | |||
| Printing Resolution | 480DPI (Physical) | |||
| Product Model | KM512I-30PL-4H | KM512I-30PL-4H | ||
| Output (sqm/h) | Print Mode 480X360dpi 2pass 480X540dpi 3pass 480X720dpi 4pass |
Output Speed (sqm/h) 120 90 60 |
Print Mode 480X360dpi 2pass 480X540dpi 3pass 480X720dpi 4pass |
Output Speed (sqm/h) 240 180 120 |
| Media Type | Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc | |||
| Auto Media Feeding System | Equipped (Max. Media Weight 120kg ) | |||
| Printhead Height | 2 to 4 mm Above Media Adjustable | |||
| RIP Software | PhotoPRINT 10.5 or Maintop V5.30 | |||
| Auto Media Feeding System | Equipped (Max. Media Weight 120kg ) | |||
| Auto Cleaning System | Positive Pressure Cleaning Anti-clogged Flash Function & Capping System | |||
| Input Power | AC 220V ,50Hz ,4500W | |||
| Machine Dimension | L4,850 x W1010 x H1,340 mm; Net Weight: 680Kgs (1,499lbs) | |||
| Package Dimension | L5230 x W1040 x H1480mm; Gross Weight: 900Kgs (1,984lbs); | Two units in one 20 feet container |
