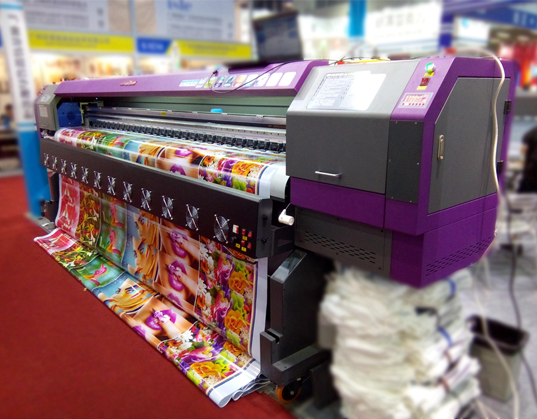

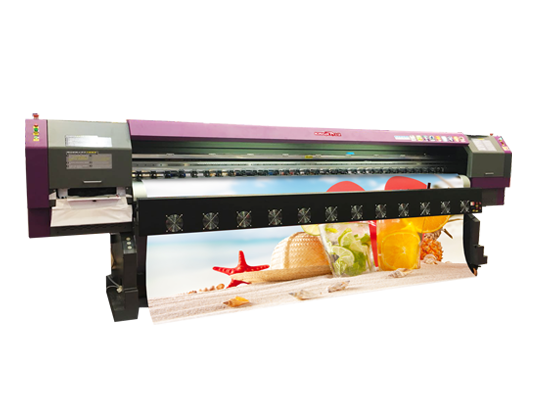

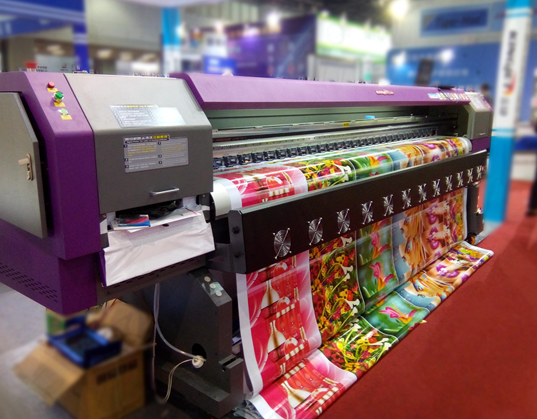

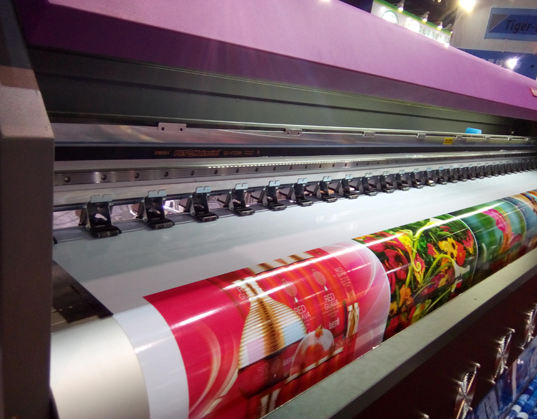

KINGJET Large Format Printer KJ-3204P

Using 4 pieces of high speed Konica 1024i solvent printhead, the KINGJET KJ-3204P solvent printer can print at speeds of up to 240 sqmh. With 8 pieces printhead, the printing speed could be 480 sqm/h.



Inquire Now Next Product


Product Details

To meet needs of printnig speed & precision, KINGJET KJ-3208P use KONICA MINOLTA 1024i print head, deliver high precision prints more efficiently. New printing technology make it possible to print 1 PASS & 480 sqm/h (8H) max speed.

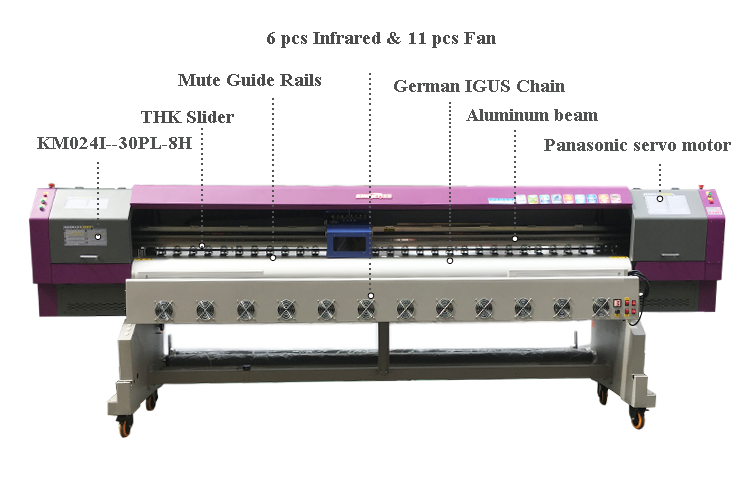

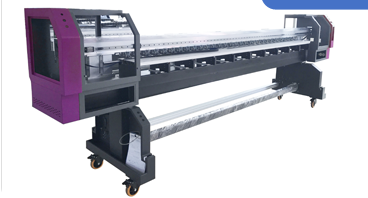

01. NEW FRAME

New industrial frame design, more acuate and stable.

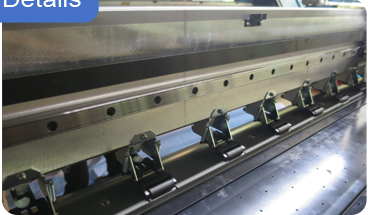

02. Alumunium Beam

Adopt the strong alumunium beam.HIWIN rail and German IGUS chain.

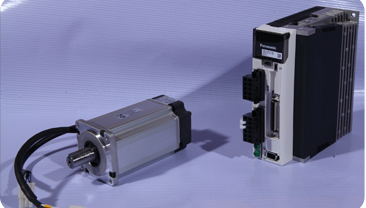

03. Servo Motor

Imported 400W Panasonic AC servu motor system,printing more effiecient.

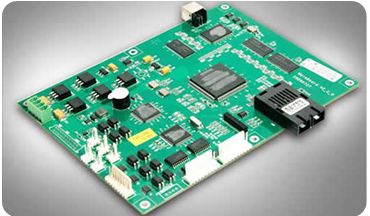

04. Control System

Konica Minolta certified and strongly recommended control system.

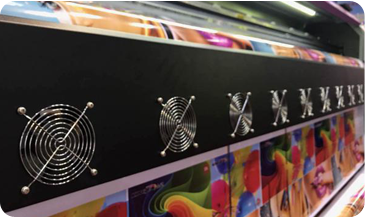

05. High Efficiency Drying System

6 pcs infrared heating & 11 pcs drying fan,can satisfy the large printing output.

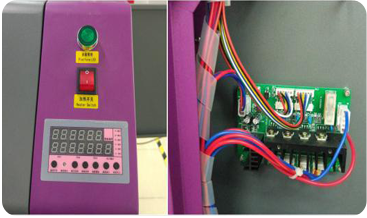

06. Constant Heating System

Multiple 3 phases constant heating system dry faster and image stay for longer.Intelligent control Panel.

Application


Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.


Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.


Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.


Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.



Specifications

Model KJ-3204P (4H) KJ-3208P(8H)
Max.Printing Max.Printing Width
Printhead KM512i-30PL-8H
Output Speed 2Pass 240m²/h
Printing Resolution 480x360dpi 2pass 240 ㎡/h
480x540dpi 3pass 180㎡/h
480x720dpi 4pass 120㎡/h
Ink KINGJET solvent ink, 4 Colors( C, M , Y, K )
Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System
Ink Capacity 5L Per Main Tank of Each Color
Media Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Media Width 3300mm (10.8ft)
Equipped Auto Media Feeding System (Max.Media Weight :120KG)
Pre-heating & Drying System
Print Interface USB2.0
Printhead Height 2 to 4 mm Above Media Adjustable
RIP Software Photoprint, Maintop
Input Power AC 220V ,50Hz ,4500W
Operation Environment Temperature: 20~28℃ Humidity: 40%~60%
Machine Size L4650 x W884 x H1303mm; Net Weight: 780Kgs (1,499lbs)
Package Dimension L4890 x W1060 x H1650mm; Gross Weight: 1000Kgs (1,984lbs);
